There is a specific, sinking feeling that occurs when you press the wall button to open your garage and instead of a smooth upward motion, you hear a sickening crunch or a loud snap. You look up to find your garage door hanging at a dangerous, lopsided angle. One side is higher than the other, and a thick metal wire is likely dangling loosely from the top corner of the frame.
This is a classic case of a garage door cable coming off its drum. At Garage Pros KC, we see this issue frequently across the Kansas City metro area. It is a problem that requires immediate attention because it compromises both the security of your home and the physical safety of your family.
Understanding the Role of the Garage Door Cable
To understand why a cable comes off, you first have to understand what that cable actually does. Most modern garage doors in Kansas City use a torsion spring system. This system consists of a heavy metal bar located above the door with one or two large springs tightly coiled around it. At the ends of this bar are metal drums. The garage door cables are attached to the bottom brackets of the door, run up the sides, and wrap around these drums.
When the springs unwind to lift the door, they spin the bar and the drums. This action pulls the cables up and lifts the heavy door. Essentially, the cables are the tendons of your garage door system. They do the heavy lifting while the springs provide the power. When a cable comes off the drum on one side, that side of the door loses all support. The entire weight of the door suddenly shifts to the other side, which puts immense strain on the remaining cable and the track. This is why the door looks crooked and why you should never try to force it to move.
Why Do Garage Door Cables Slip?
There are several reasons why a cable might slip out of its designated path. Identifying the cause is the first step in the troubleshooting process, even if the actual repair requires a professional touch.
Common causes for slipped cables include:
- Broken Torsion Springs: This is the most frequent culprit. When a spring snaps, it loses its ability to hold tension on the cable. Without that tension, the cable becomes slack and easily slips off the grooves of the drum.
- Physical Obstructions: If the door hits a garbage can, a lawnmower, or a toy on its way down, one side of the door may stop while the other continues to move. This creates a moment of slack that allows the cable to jump out of the drum.
- Ice and Winter Weather: In Kansas City, we often see doors freeze to the driveway. When the opener tries to yank the door up, it might pull one side free while the other remains stuck, popping the cable off.
- Incorrect Cable Tension: If the cables were not installed with the correct amount of tension originally, they can gradually vibrate out of place until they eventually fail.
- Worn-Out Drums or Bearings: Over time, the grooves on the metal drums can wear down, or the bearings in the torsion bar can seize, causing the cable to wrap unevenly.
Immediate Safety Steps You Should Take
If you notice your door is lopsided or a cable is loose, your very first action must be to stop. A garage door in this condition is essentially a “loaded” hazard.
Follow these steps immediately to prevent injury or further property damage:
- Do Not Press the Button: Stop using the opener immediately. Trying to “level it out” with the motor will likely burn out the motor or pull the door completely out of the tracks.
- Clear the Area: Ensure that no pets, children, or vehicles are anywhere near the garage door. If the second cable snaps, the door could fall with thousands of pounds of force.
- Do Not Pull the Emergency Release: While it is tempting to pull the red cord to try and move the door manually, doing so on a lopsided door can cause it to crash down instantly since there is no tension to hold it up.
- Avoid Touching the Cables: These wires are often frayed or under extreme pressure. Touching them without the proper tools can lead to serious hand injuries.
Visual Troubleshooting: What to Look For
While we do not recommend that homeowners attempt to put the cable back on themselves, you can perform a safe visual inspection. This information is incredibly helpful when you call Garage Pros KC for a garage door cable repair.

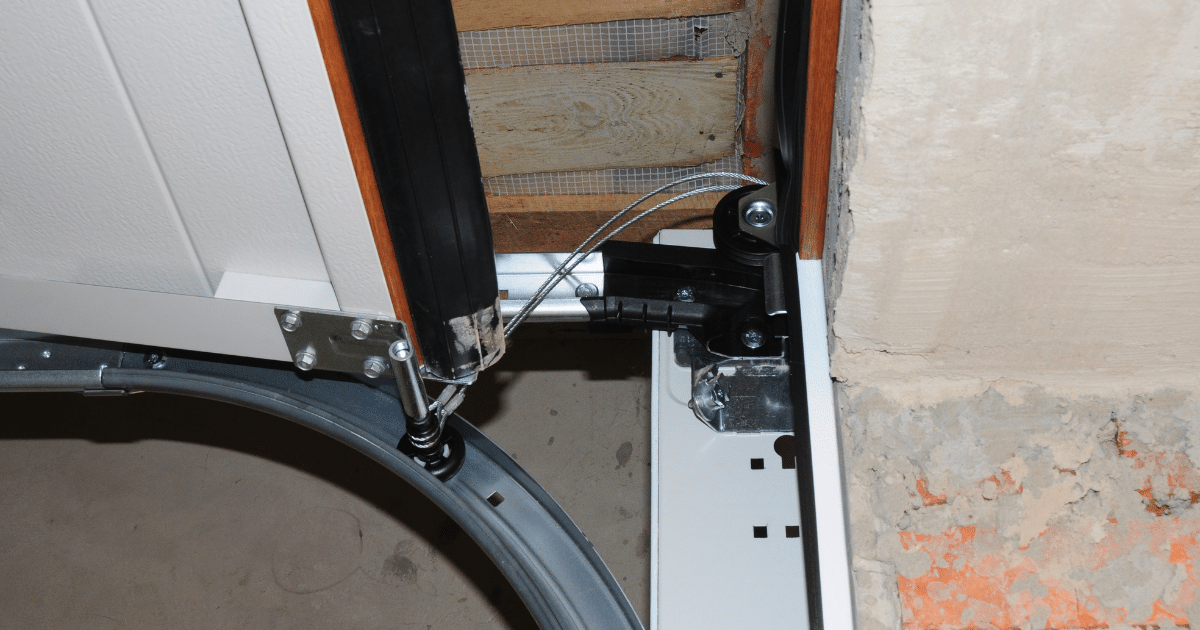

Look at the torsion bar above the door. Is the spring intact, or is there a visible two-inch gap in the coils? A gap means the spring is broken. Next, look at the drums at either end of the bar. On the side where the door is hanging lower, you will likely see the cable tangled or wrapped around the shaft instead of the drum.
Check the bottom bracket where the cable attaches to the door. Sometimes, the bracket itself has rusted or broken away, which is common in the humid Missouri and Kansas summers. Finally, look at the tracks. Has the lopsided movement forced the rollers out of the track? If the rollers have popped out, the door is in an even more precarious position.
Why This Isn’t a DIY Project
It is tempting to watch a quick video and think you can simply hook the cable back on. However, garage door cables are intrinsically linked to the torsion springs. To put a cable back on the drum, you generally have to release the tension on the springs.
Those springs are under enough force to cause life-altering injuries if a winding bar slips or a component fails. Furthermore, a cable coming off is usually a symptom of a deeper issue. Simply putting the cable back on without addressing why it fell off in the first place means it will likely happen again.
Professional Solutions by Garage Pros KC
When you call Garage Pros KC to handle a cable issue, we provide a comprehensive fix. We don’t just “reset” the wire; we perform a full system health check to ensure your home is secure.
We understand that a garage door that won’t close is a major security risk for your Kansas City home. That is why we prioritize these calls. If your cable has come off on one side, give us a call and let the experts handle the heavy lifting.
